WAP

Getting information about WAP sessions billing​

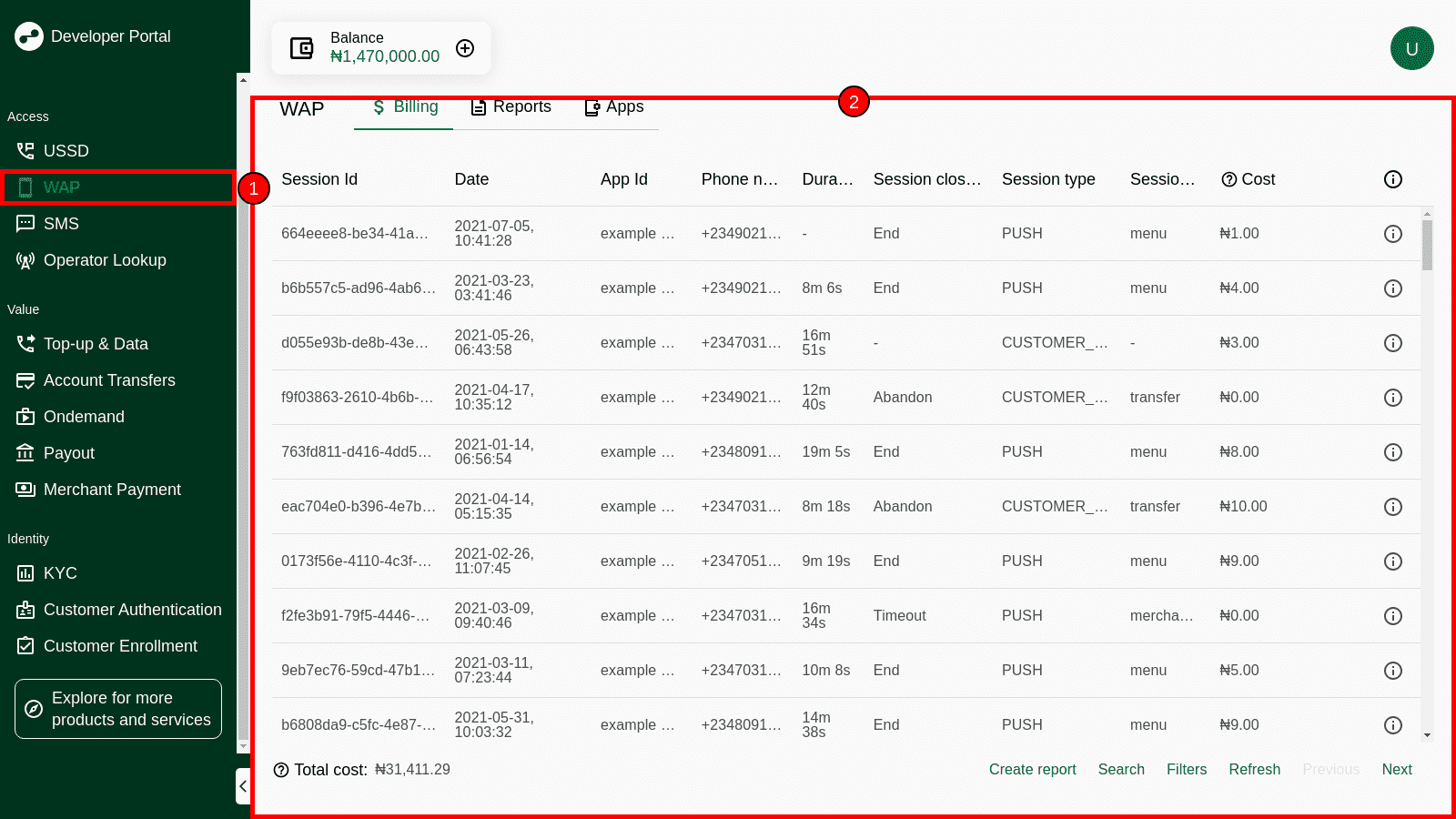

To get an information about WAP sessions billing:

  1. Click the WAP in menu or click the tab Billing.
  2. All detailed information about WAP sessions are placed in table. For more information on individual parts of the table see the USSD Billing view section.

Getting detailed information about WAP single billing session​

To get detailed information about WAP single billing session:

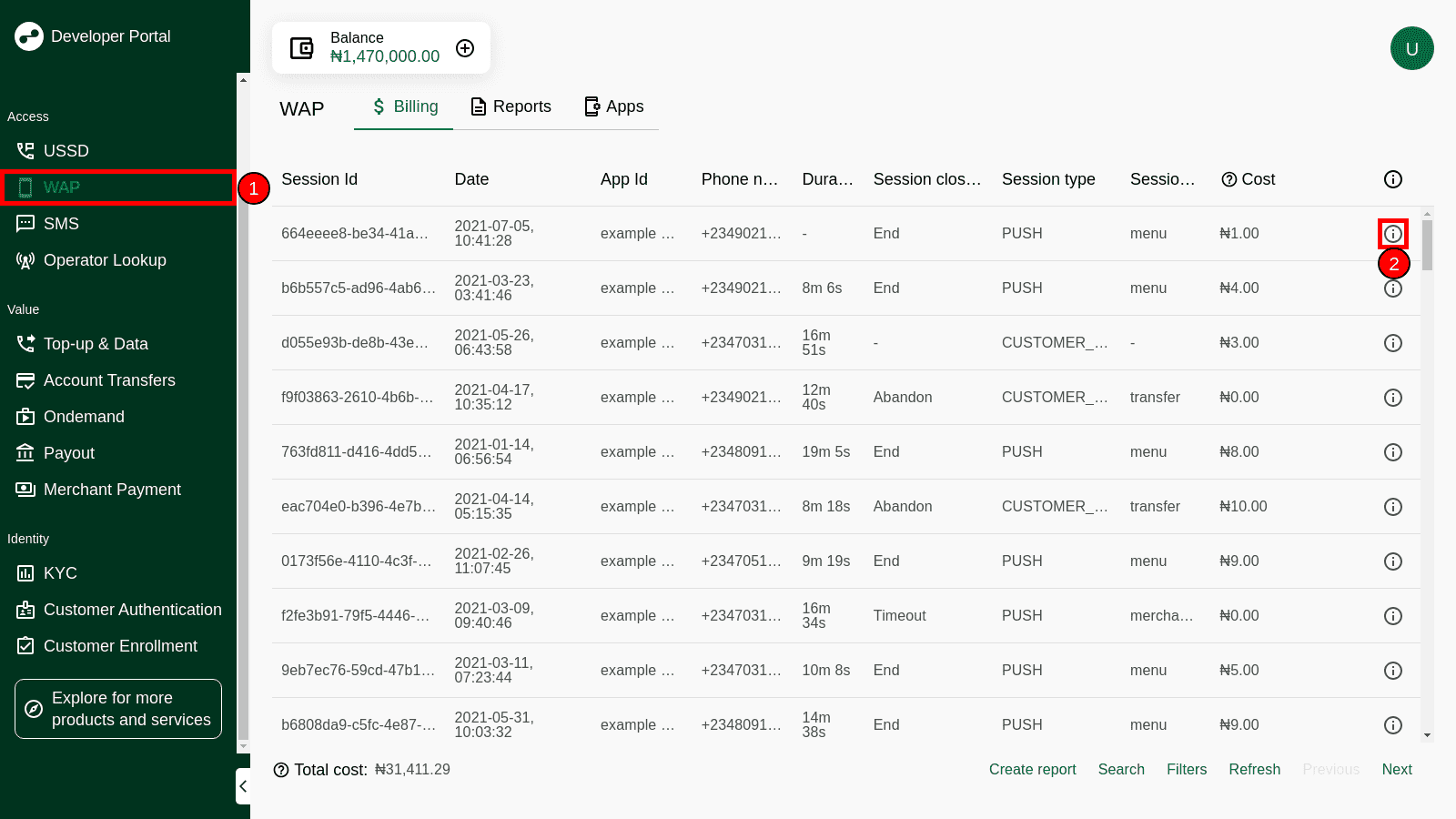

  1. Click the WAP in menu or click the tab Billing.
  2. Click the "Info" icon in the actions column.

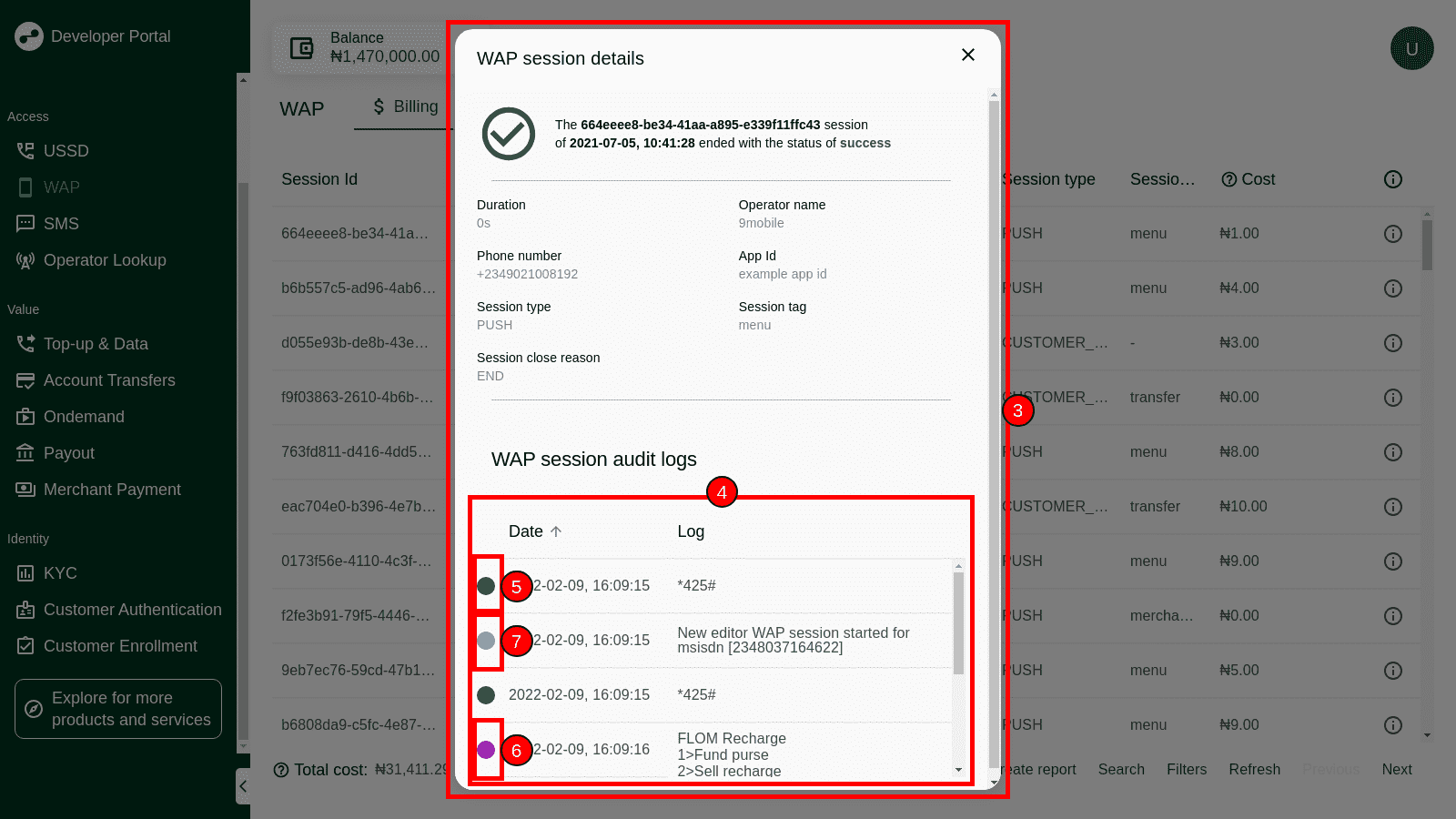

  1. You should see dialog window with all information about this operation
  2. You can also find information about WAP session events. We can distinguish the following event types:
  • User input (5) - the event contains a text entered by the customer on the phone
  • WAP application response (6) - the event contains a text returned to the customer's phone by the WAP application
  • System information (7) - misc system events that contain information about WAP session states and errors that occurred during the session

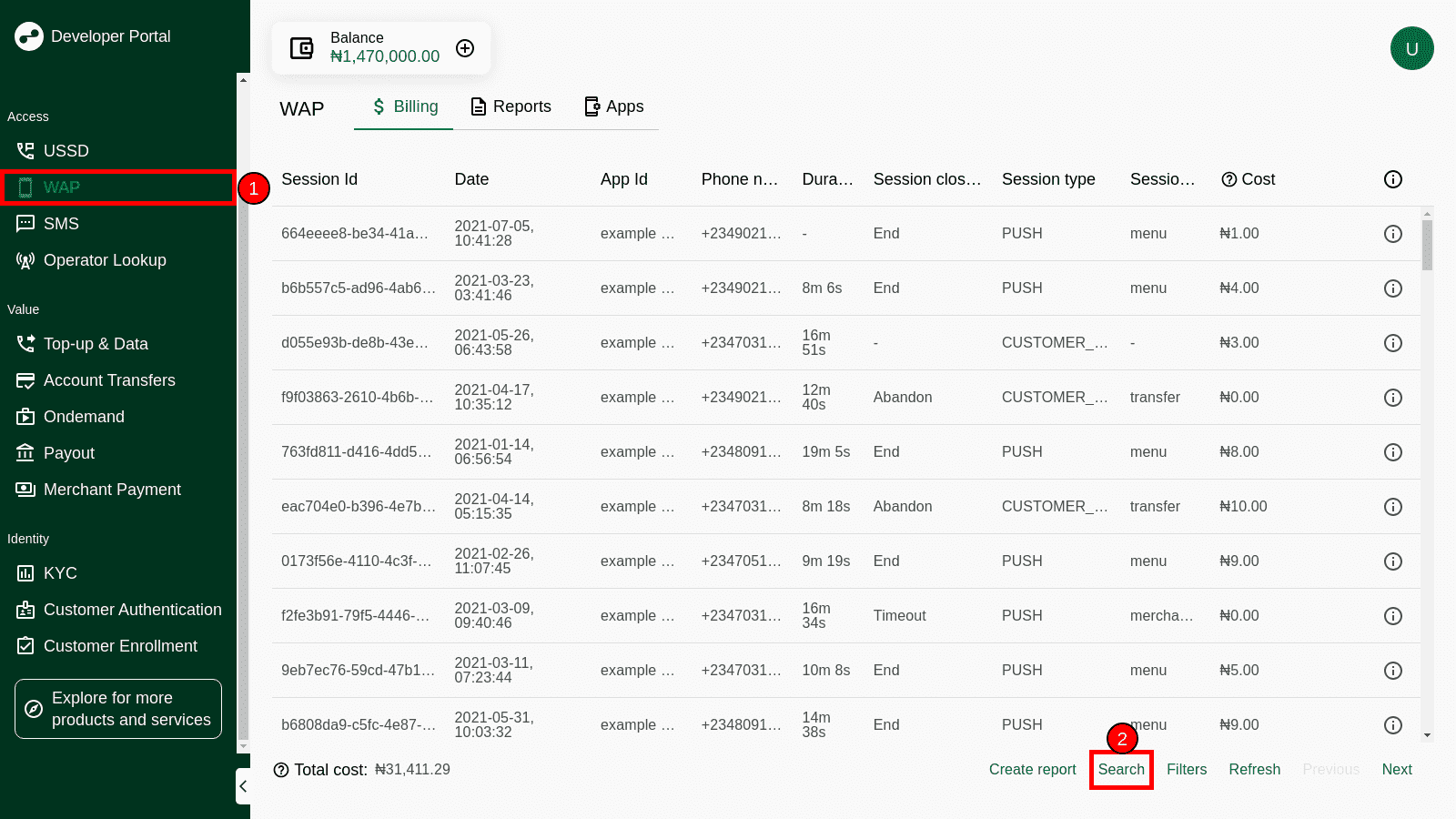

Searching for single WAP session with session id​

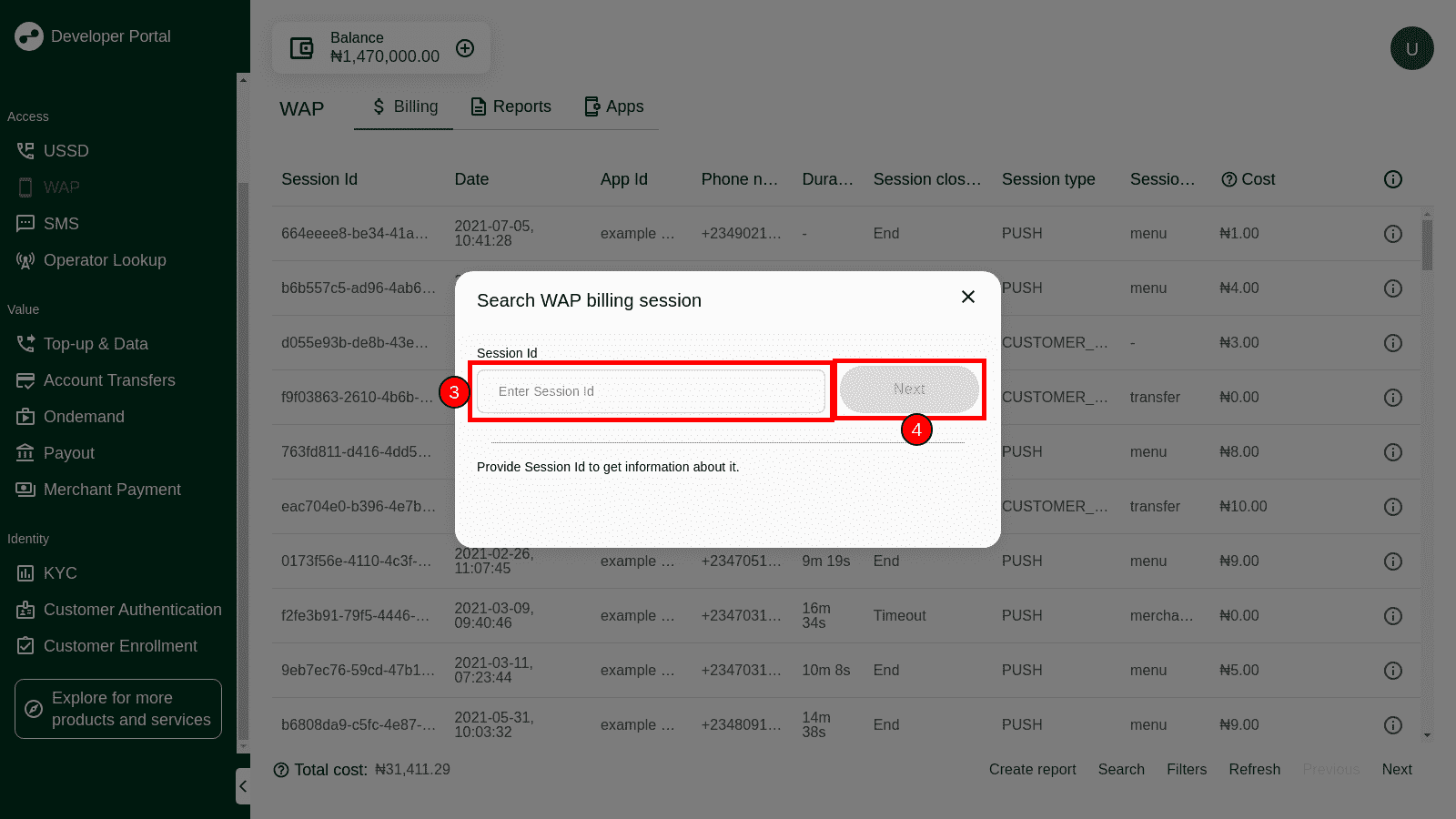

To find specific session having operation id only, you need to:

  1. Click the WAP in menu or click the tab Billing in submenu.
  2. Click the "Search" button under the table.
  1. Provide operation id
  2. Click "Next"
  1. If operation exist you will see all information about it.
  2. You can also find information about WAP session events. We can distinguish the following event types:
  • User input (7) - the event contains a text entered by the customer on the phone
  • WAP application response (8) - the event contains a text returned to the customer's phone by the WAP application
  • System information (9) - misc system events that contain information about WAP session states and errors that occurred during the session

WAP Apps management​

It's a place where you can check and manage your WAP apps. The WAP application's profile is information stored on the QRIOS platform used to identify and call developer's integrations implementing the WAP API.

Getting information about existing WAP apps​

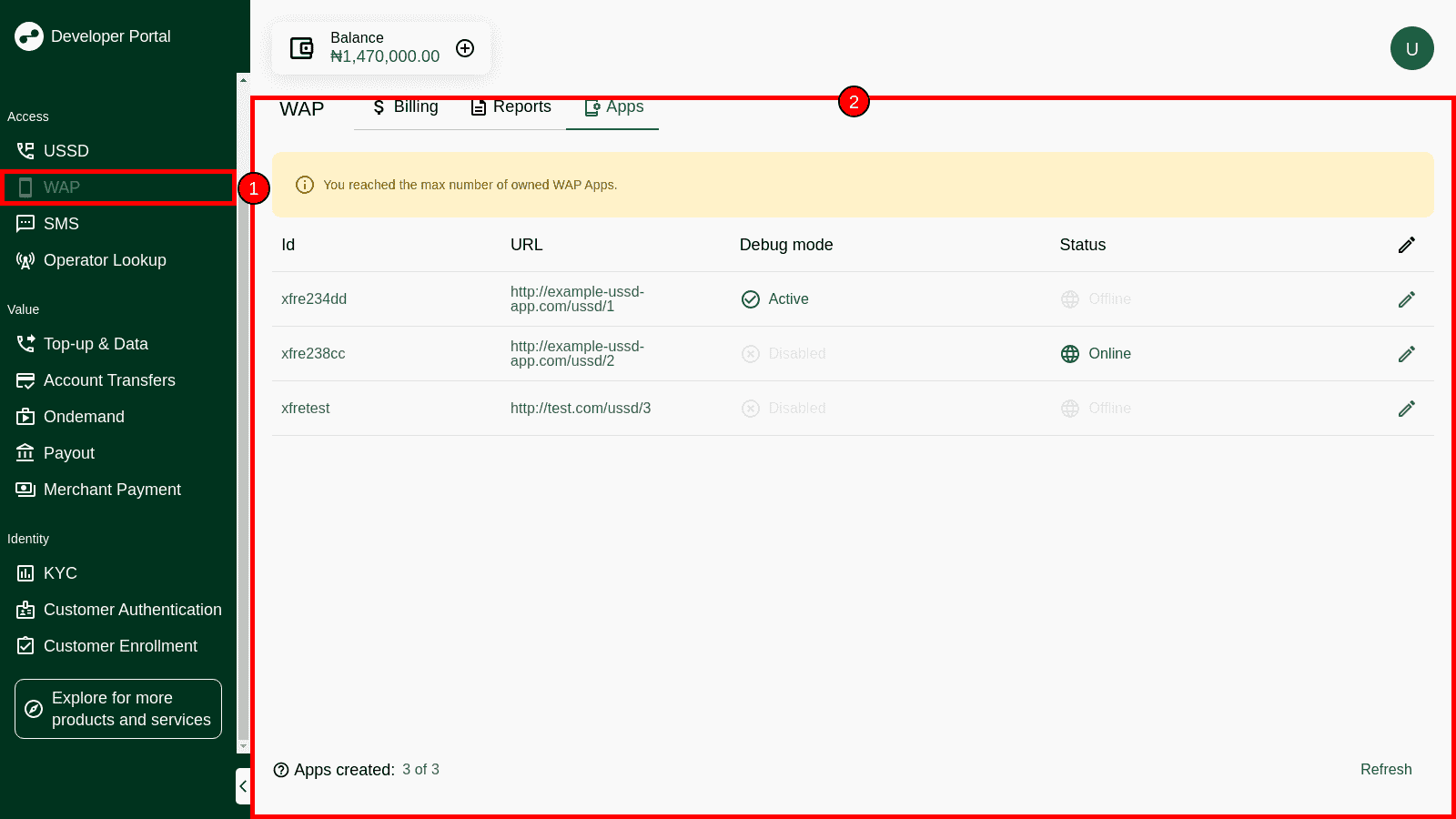

To get information about existing WAP apps:

  1. Click the WAP in menu and then click the Apps tab in submenu.
  2. All detailed information about WAP apps are placed in table. For more information on individual parts of the table see the WAP Apps view section.

Create new WAP app​

To create a new WAP app you have to contact Qrios platform administrators and provide the following:

  • App Id is a string which uniquely identifies a developer's application in Qrios API. It's passed in each request body, and it's also used in WAP push request.

  • App URL it's a web address of the application e.g. https://example-developer-app.com/wap. The developer's WAP application has to be accessible through Internet, so Qrios platform could reach it. Your service should be exposed by this address and implement the USSD API. To find out how to use Qrios USSD API in WAP context check the guide.

tip

We encourage you to use HTTPS to secure access to your application through the Internet.

  • SMS message template The customer enters the WAP session via link from an SMS. The SMS content can be customized with a template. The template has to contain the {link} placeholder to signify where to put the link.

  • App external address An address used to create the {link} in SMS message template. This address is visible to the customer.

  • Status - with this setting you can toggle traffic to the application. When 'Offline' is set, dialing any shortcode string of your WAP application will result in returning 'App in currently under maintenance. Please, come back later' to the customer who dials it.

  • Debug mode - if debug mode is enabled, then additional information for developer will be added to WAP message when error occurs (should be disabled on production). It can be useful to debug issues with the WAP application. But we recommend using Detailed WAP session view instead.

  • Authorization method - configuration used to authorize the incoming request to the developer's application. The authorization secret value is passed in each request in the Authorization header.

tip

The authorization can be disabled, but we encourage you to enable authorization - the secret check in the developer's WAP app will make the API exposed by your system more secure for unauthorized access. After picking the proper option and generating a secret (e.g. API key), you are supposed to use this value and check if an incoming request to your system contains it in the Authorization header.

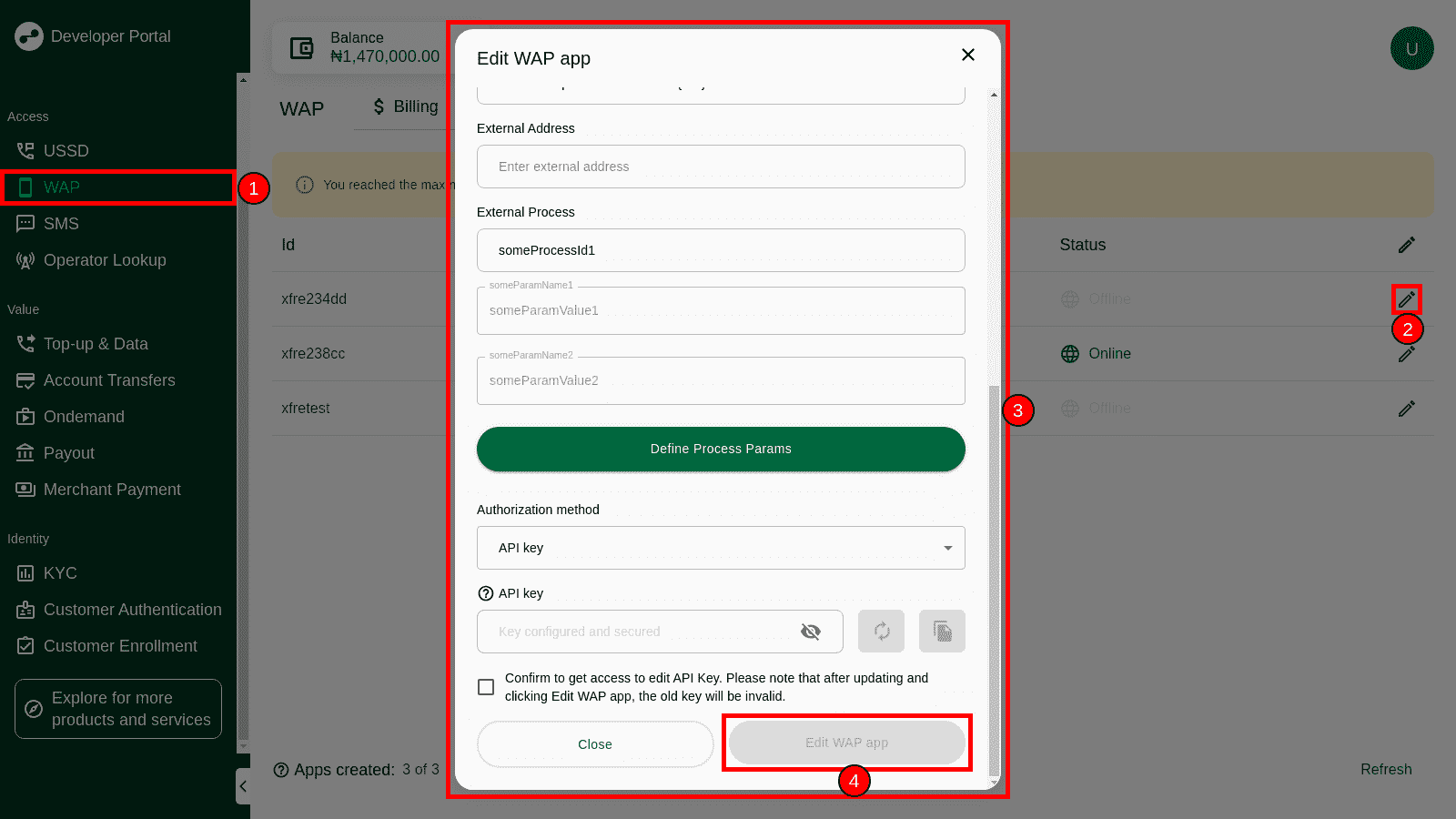

Edit existing WAP app​

To edit existing WAP app:

  1. Click the Apps tab in submenu.
  2. Click the "Pencil" icon next to app you want to edit.
  3. Change fields in the form.
  4. Click the "Apply" button.

WAP reports management​

It's a place where you can check and manage your WAP reports.

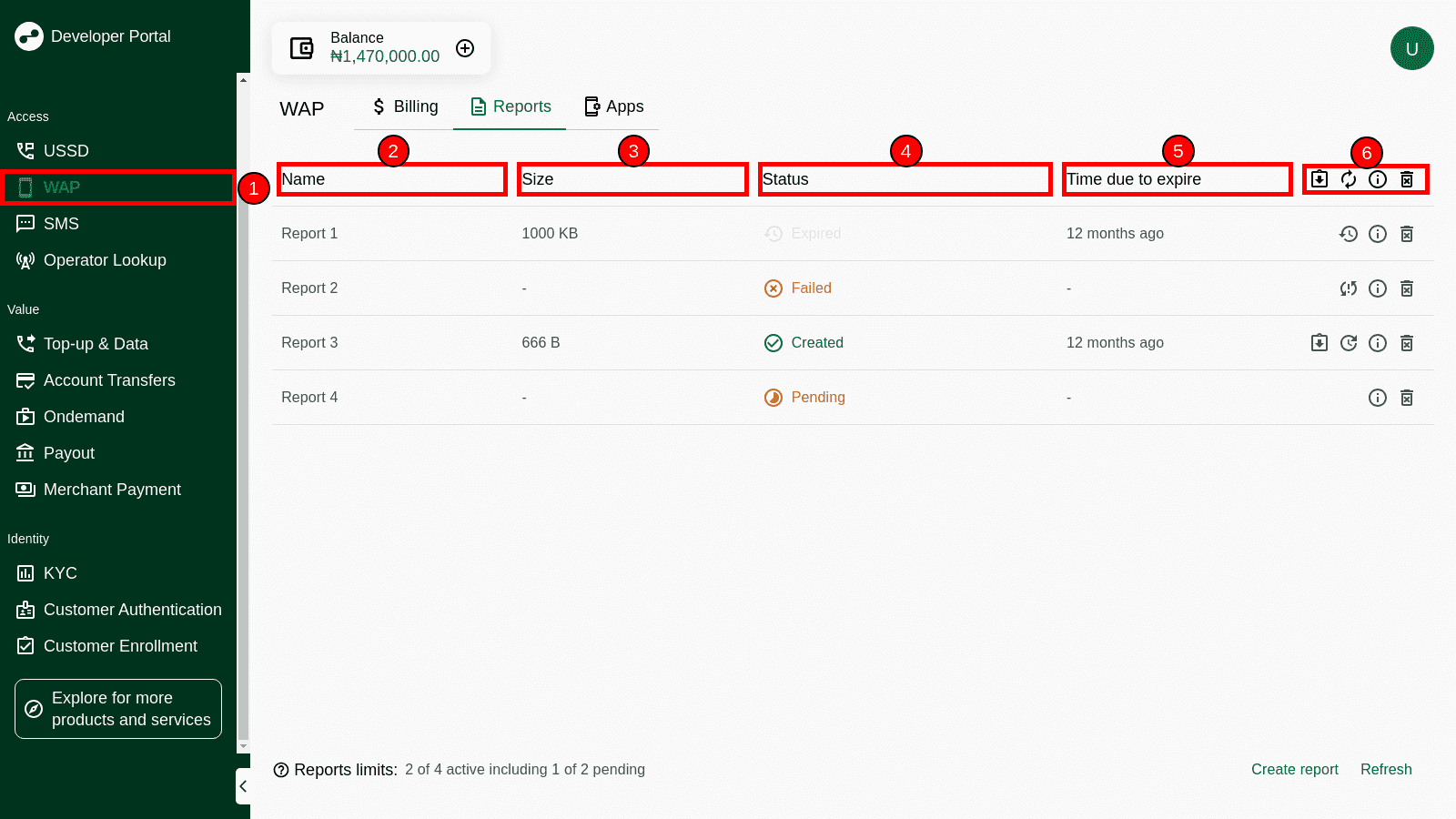

Check reports list​

To check reports:

  1. Click the WAP in menu and then click the Reports tab in submenu. You should see table with columns:
  2. Name - Name of your exported report
  3. Size - Rounded to the largest unit, available for created and expired reports
  4. Status - Current state of the report:
  • Pending - All reports have this state right after start generating, this status will change automatically, into a Created or Failed after a specific amount of time, depends on the size of the report.
  • Created - Report is ready to download.
  • Failed - Something went wrong during a report generation.
  • Expired - All reports expired after 30 days
  1. Time due to expire - a time until report will expire, in case of a created report, or time after report expired in case of expired report
  2. Actions - List of actions based on report status:
  • Pending - You can perform Details and Cancel actions
  • Created - You can perform Download, Recreate, Details and Delete actions
  • Failed - You can perform Retry, Details and Delete actions
  • Expired - You can perform Recreate, Details and Delete actions

Generate new WAP report​

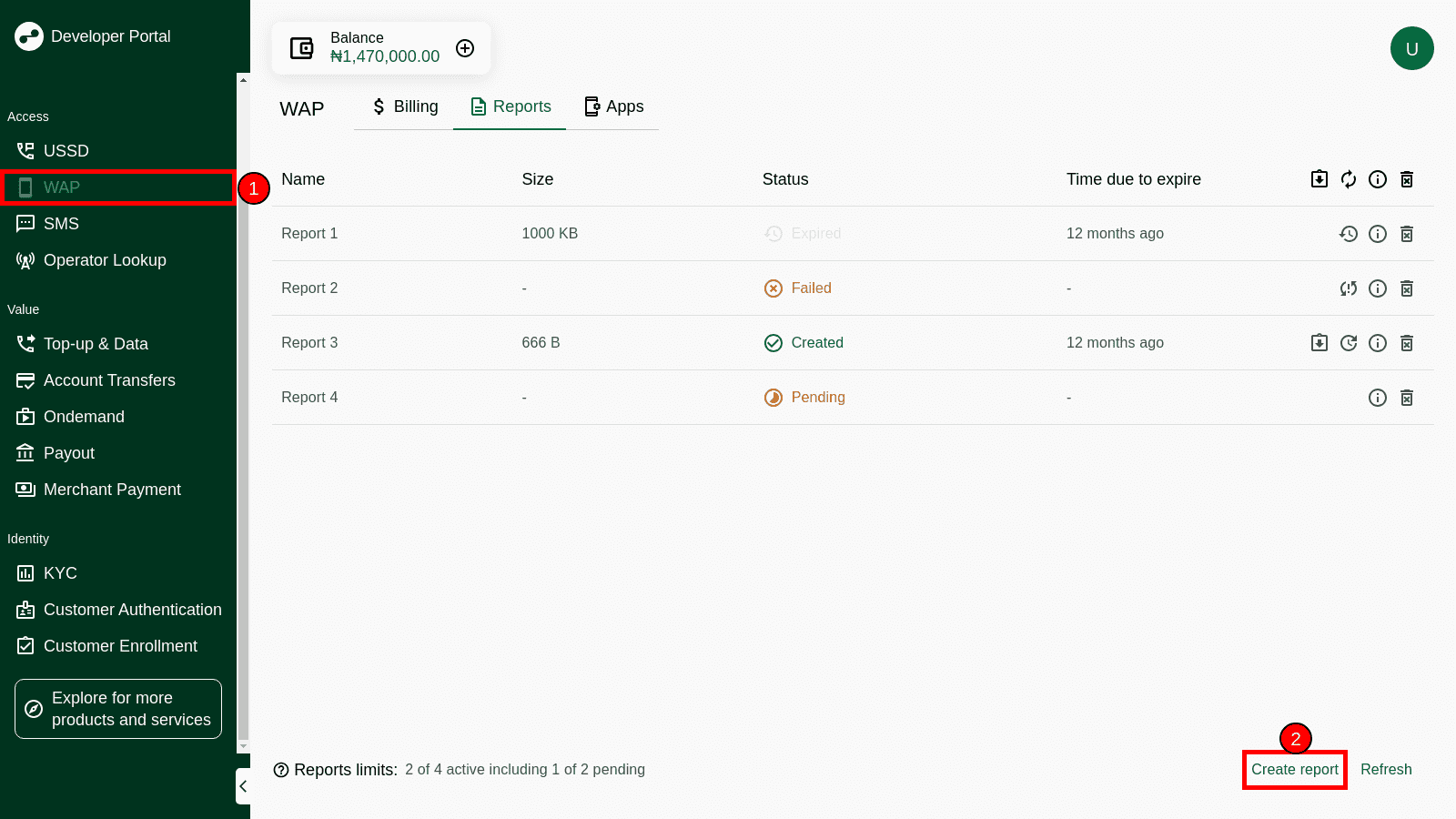

To create a new WAP report:

  1. Click the Reports tab in WAP submenu.

  2. Click the "Create report" button.

  3. Provide report name and Click "Next".

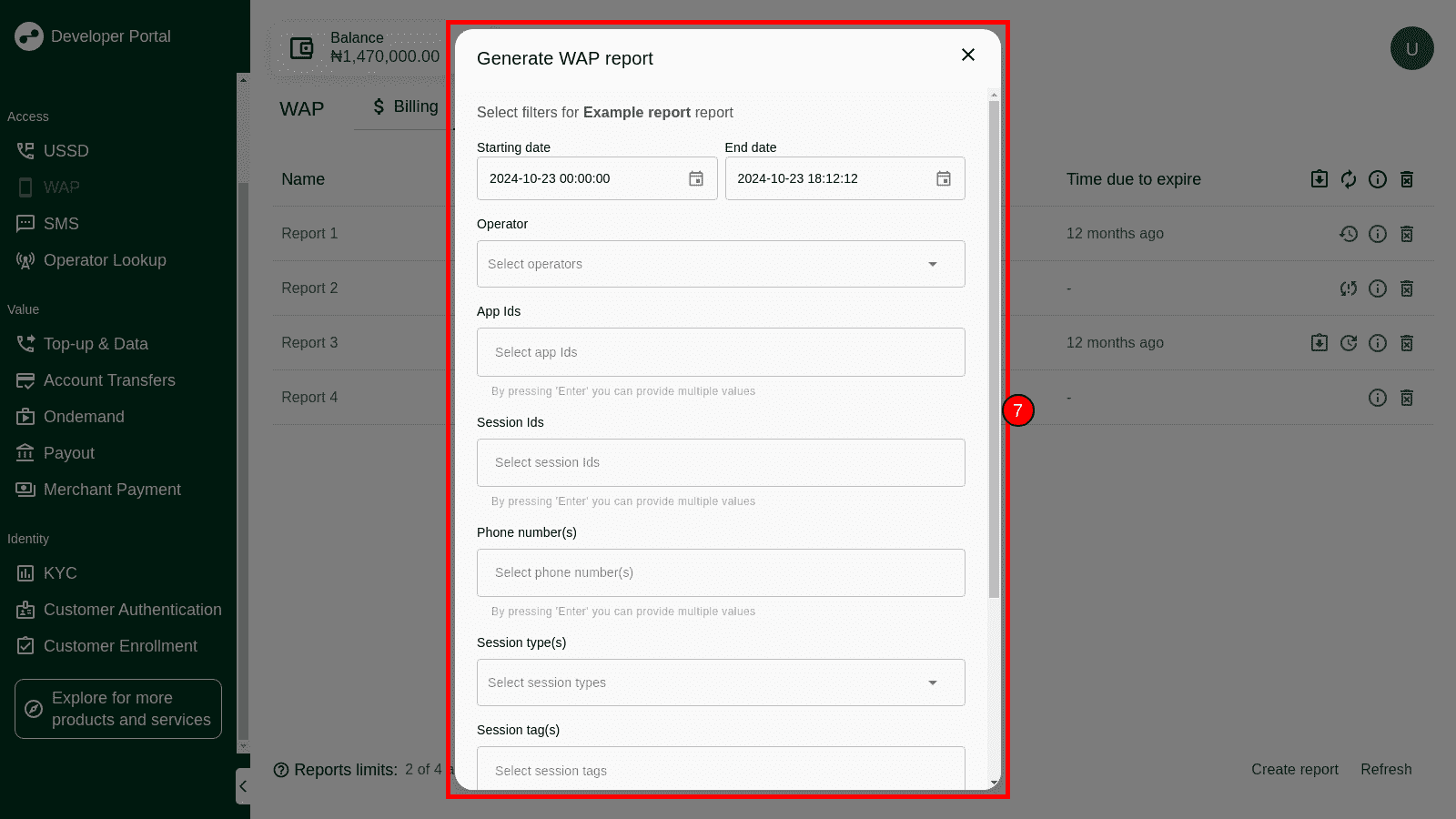

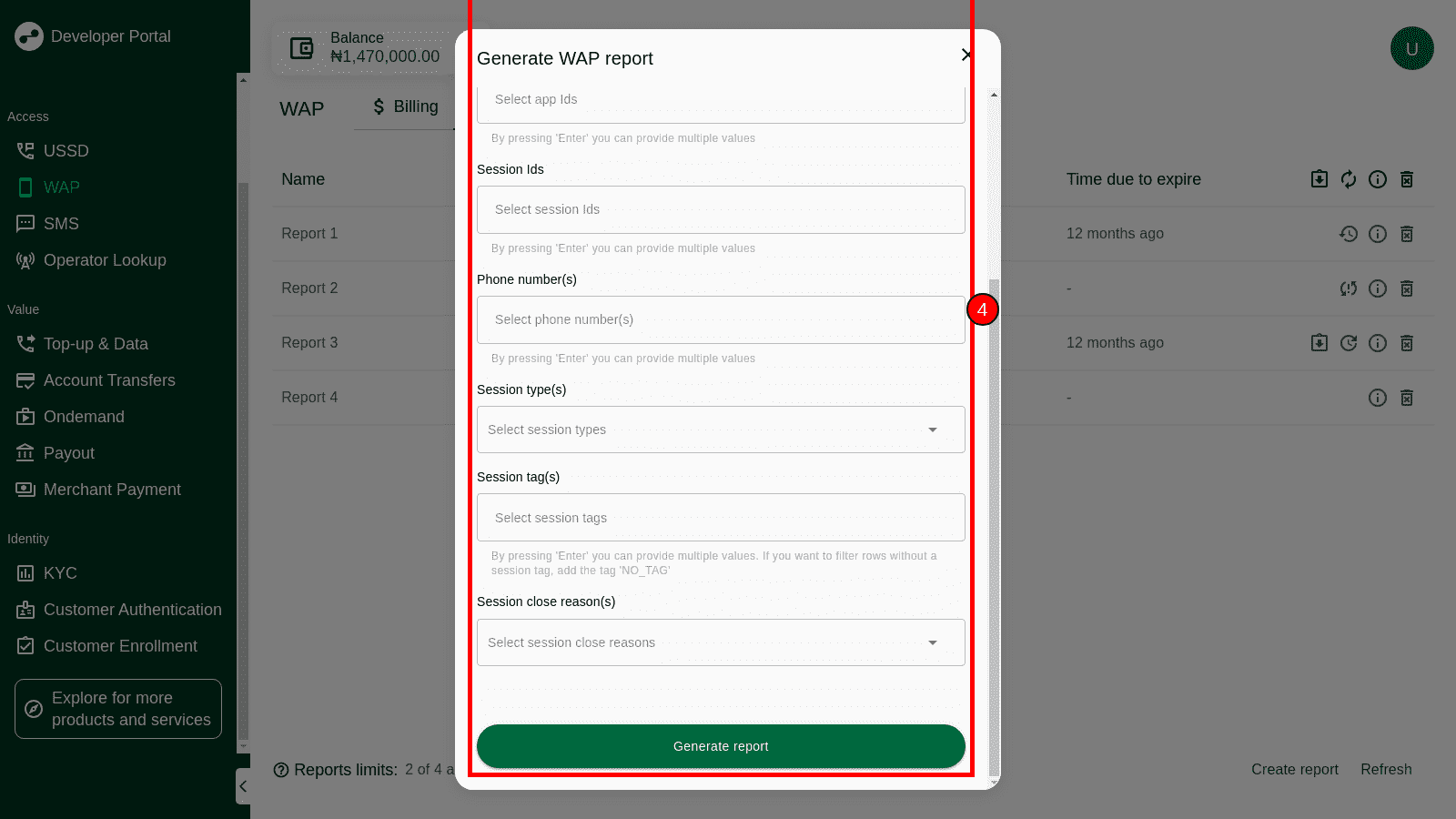

  4. Provide filters to apply and click "Generate report".

  5. When everything is correct, you should see a success message.

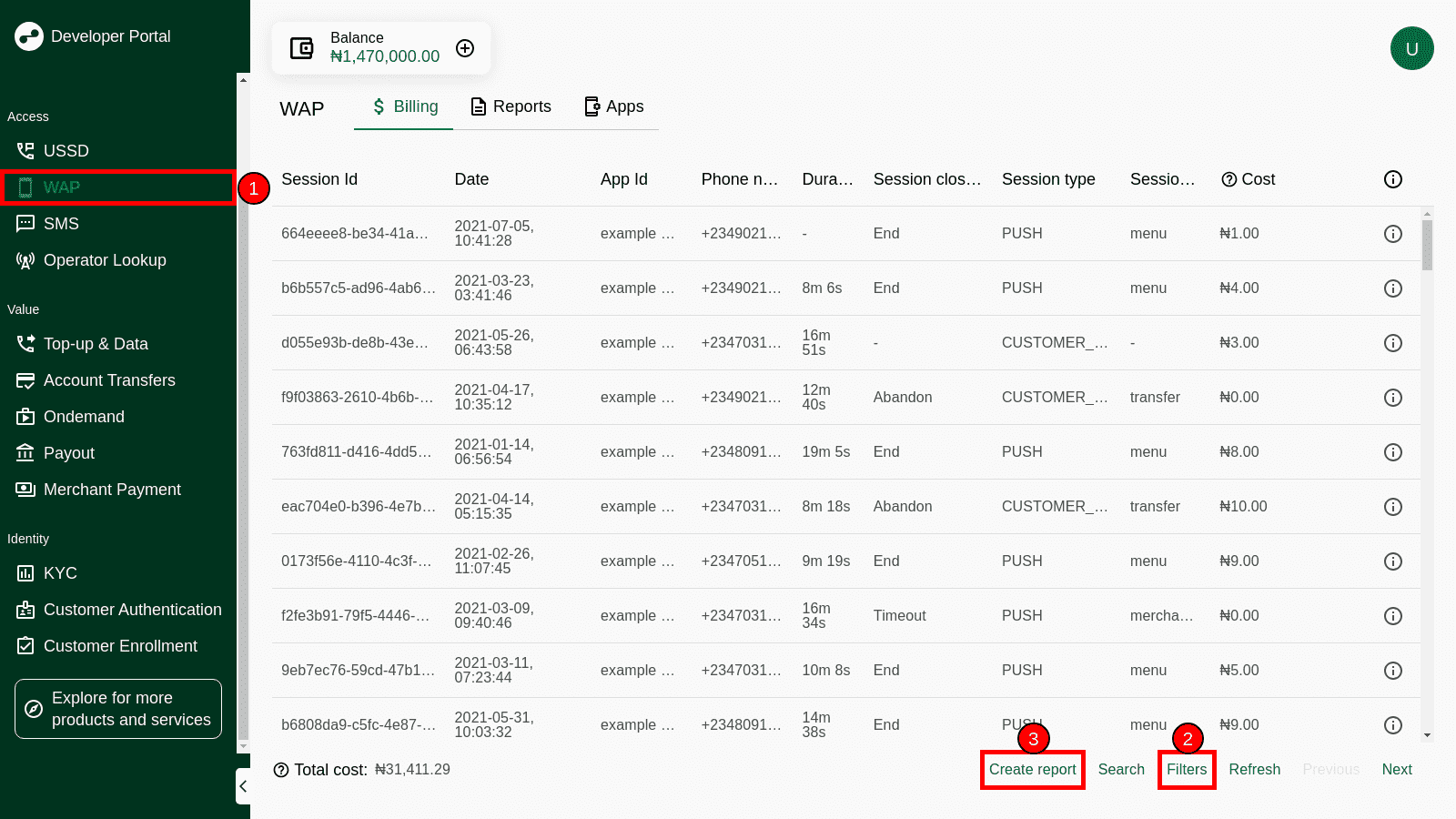

Generate new WAP report with a predefined data​

  1. Click the Billing tab in WAP submenu.

  2. If you want to change data scope click "Filters" button.

  3. When everything is correct click "Create report" button.

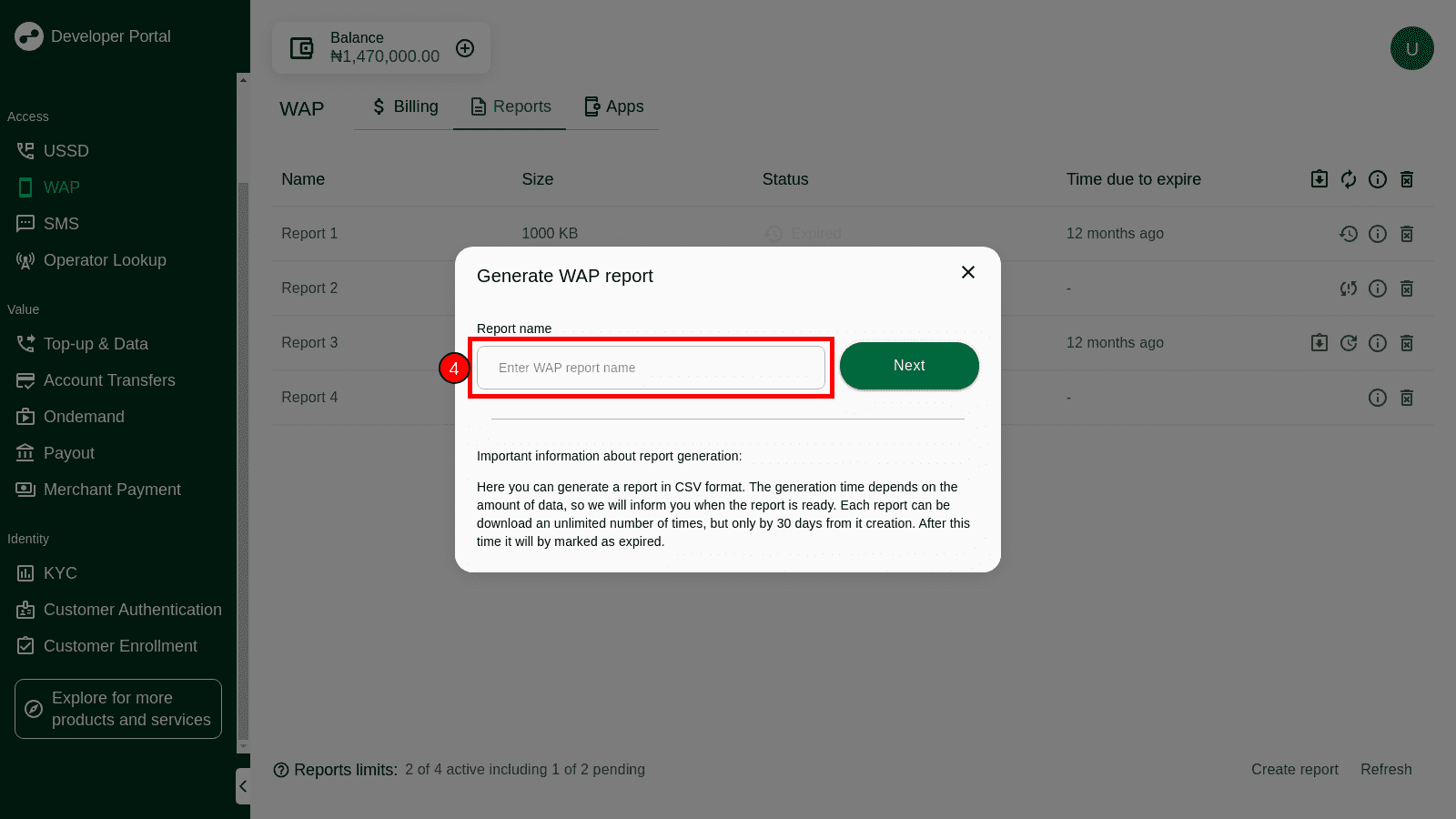

  4. You will be redirected to the WAP Reports page and asked for the report name.

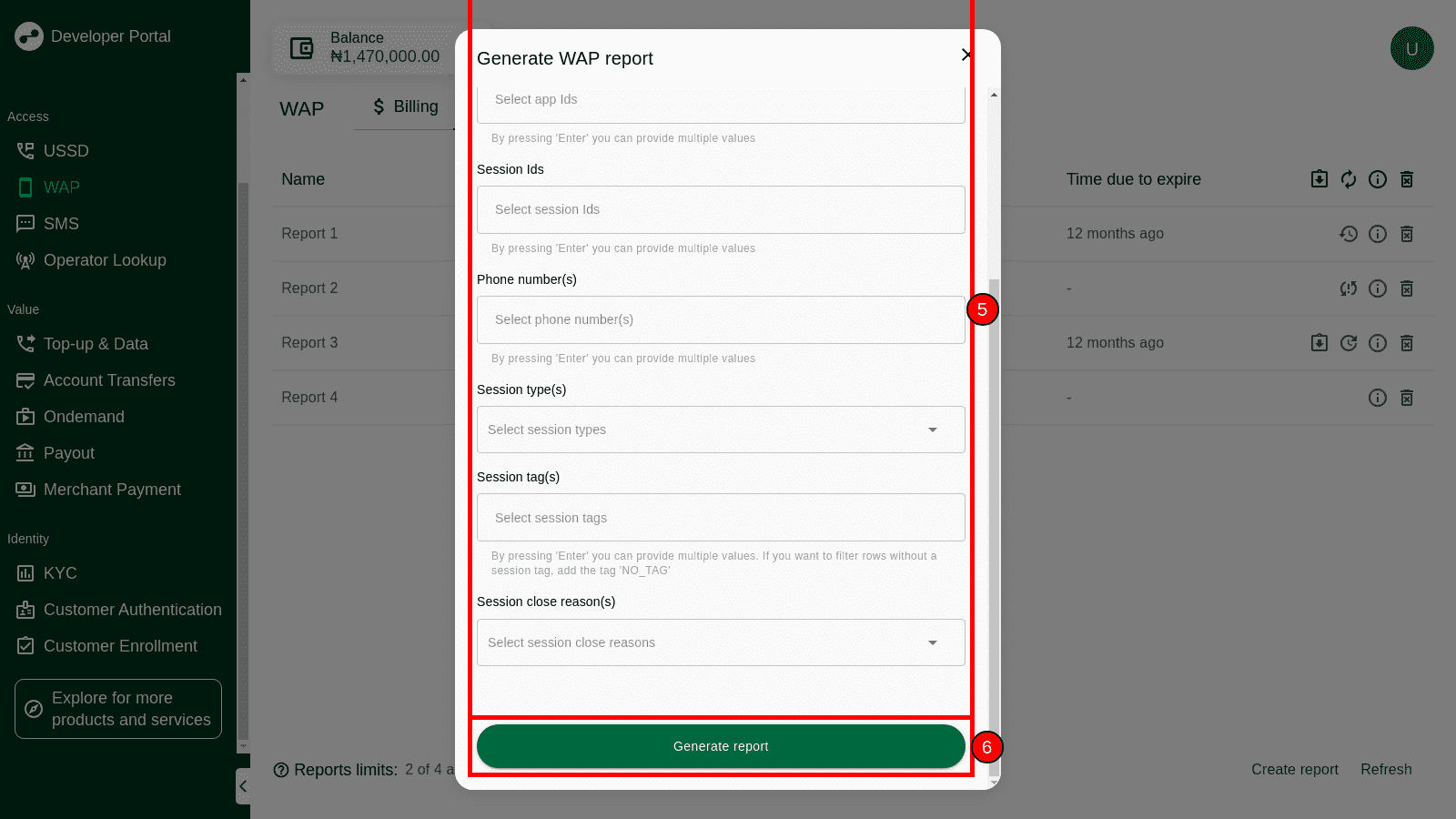

  5. Form is filled by options you choose in Billing Filters. You can update them if needed.

  6. Click "Generate report" to finish.

  7. When everything is correct, you should see a success message.

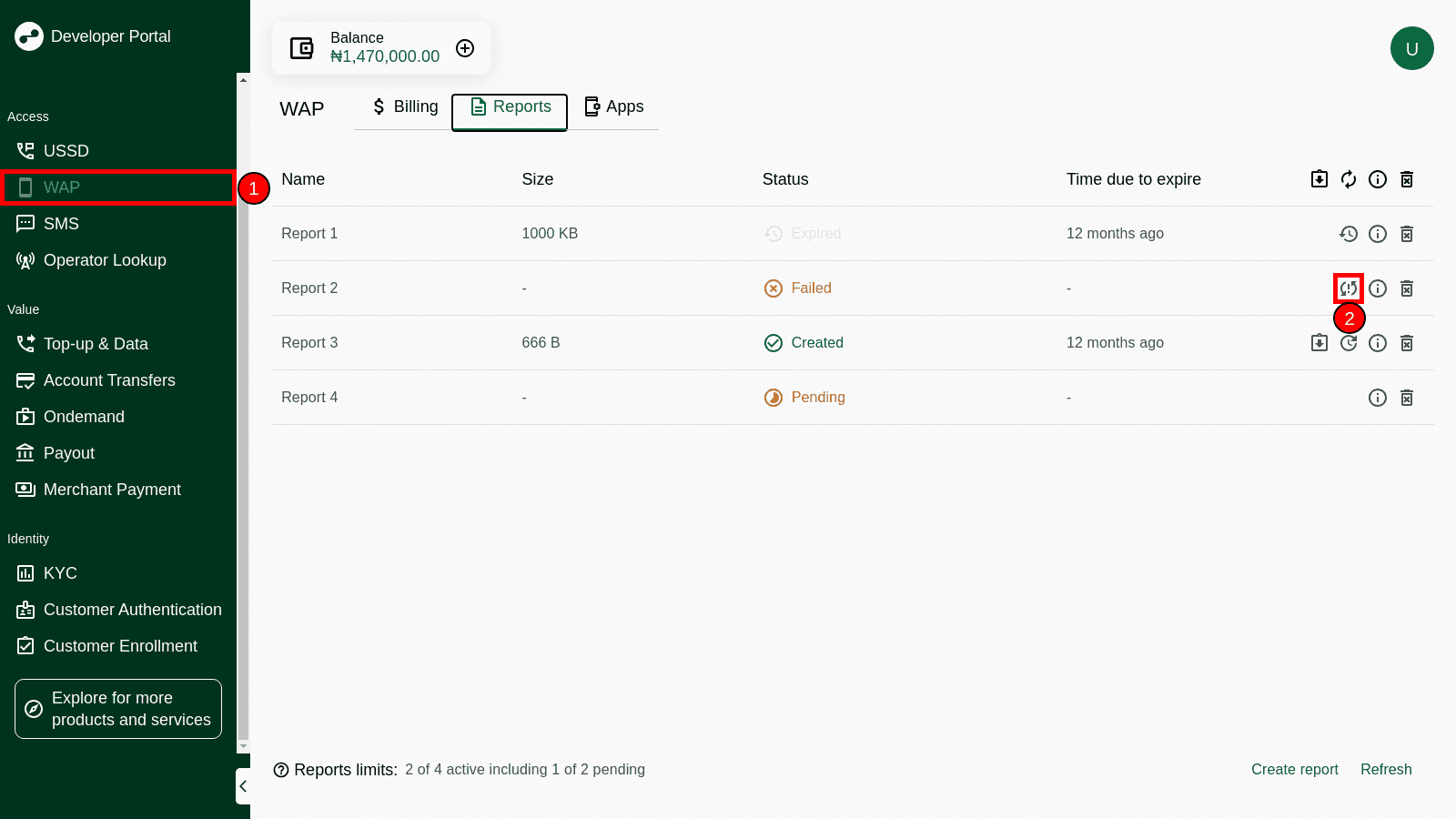

Retry report​

Can be performed only for the "Failed" report. To retry report:

  1. Click the Reports tab in WAP submenu.

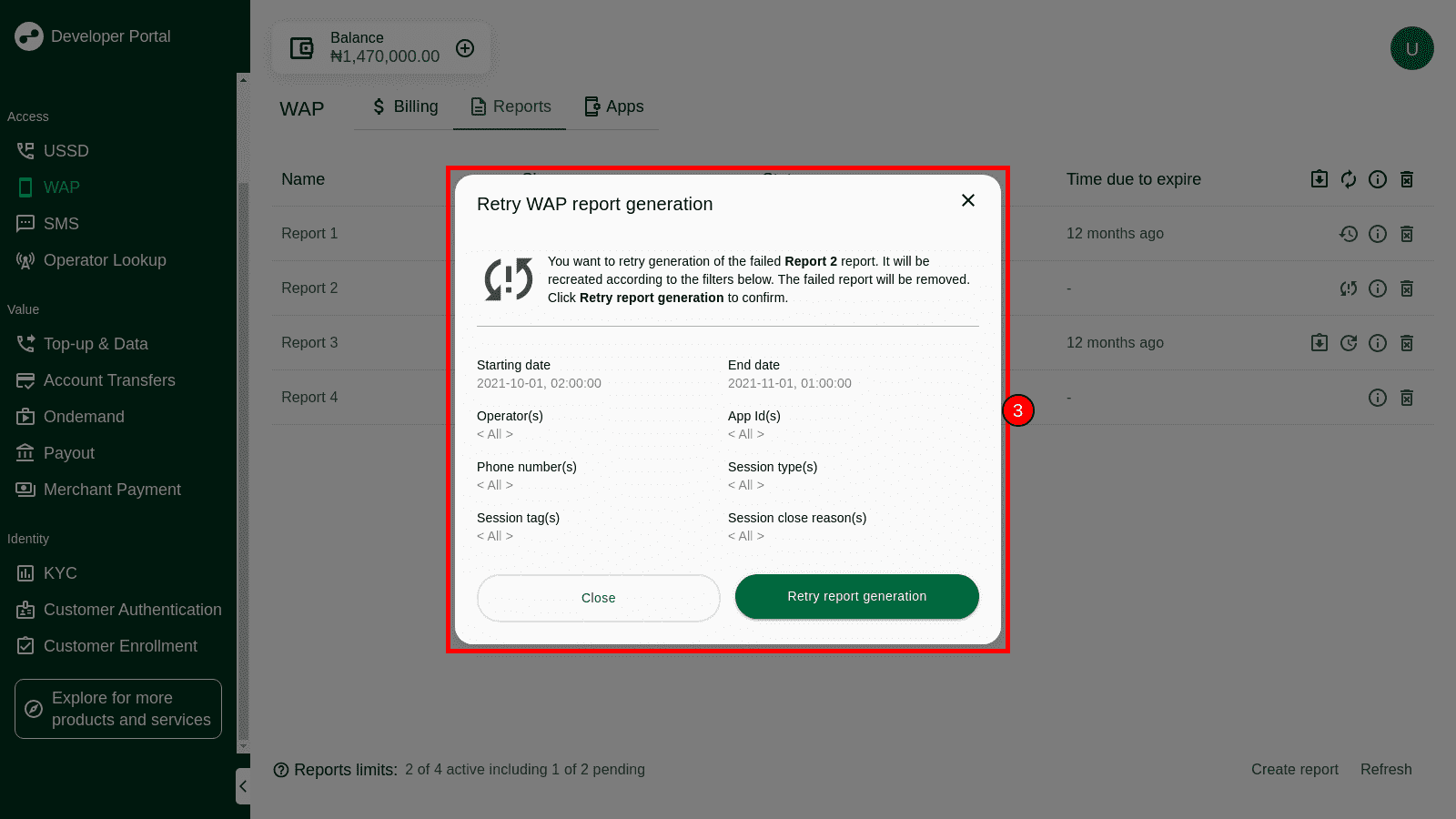

  2. Click retry action to open the retry dialog window

  3. Click "Retry report generation" to try to generate a report again

  4. When everything is correct, you should see the success message

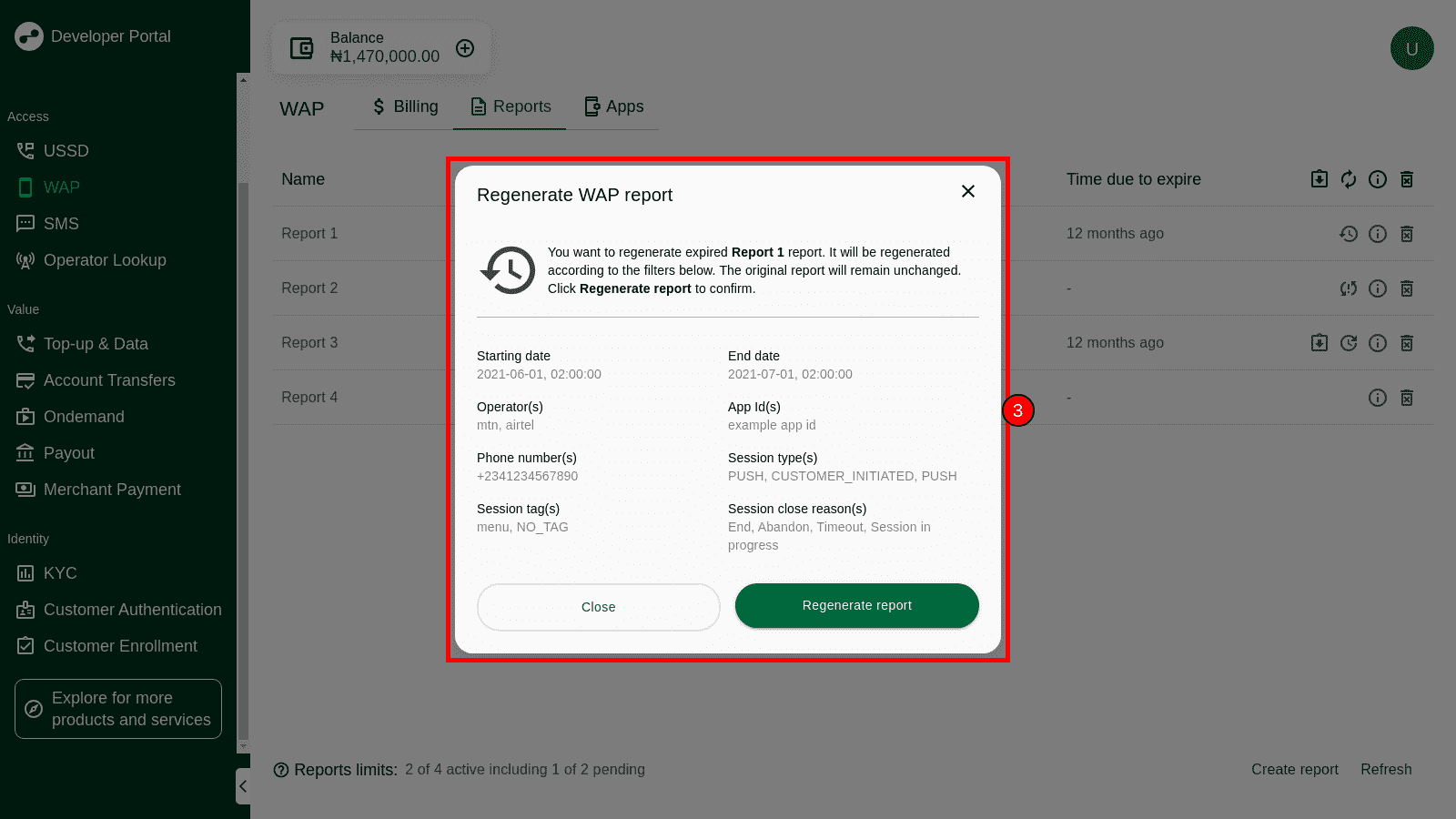

Regenerate report​

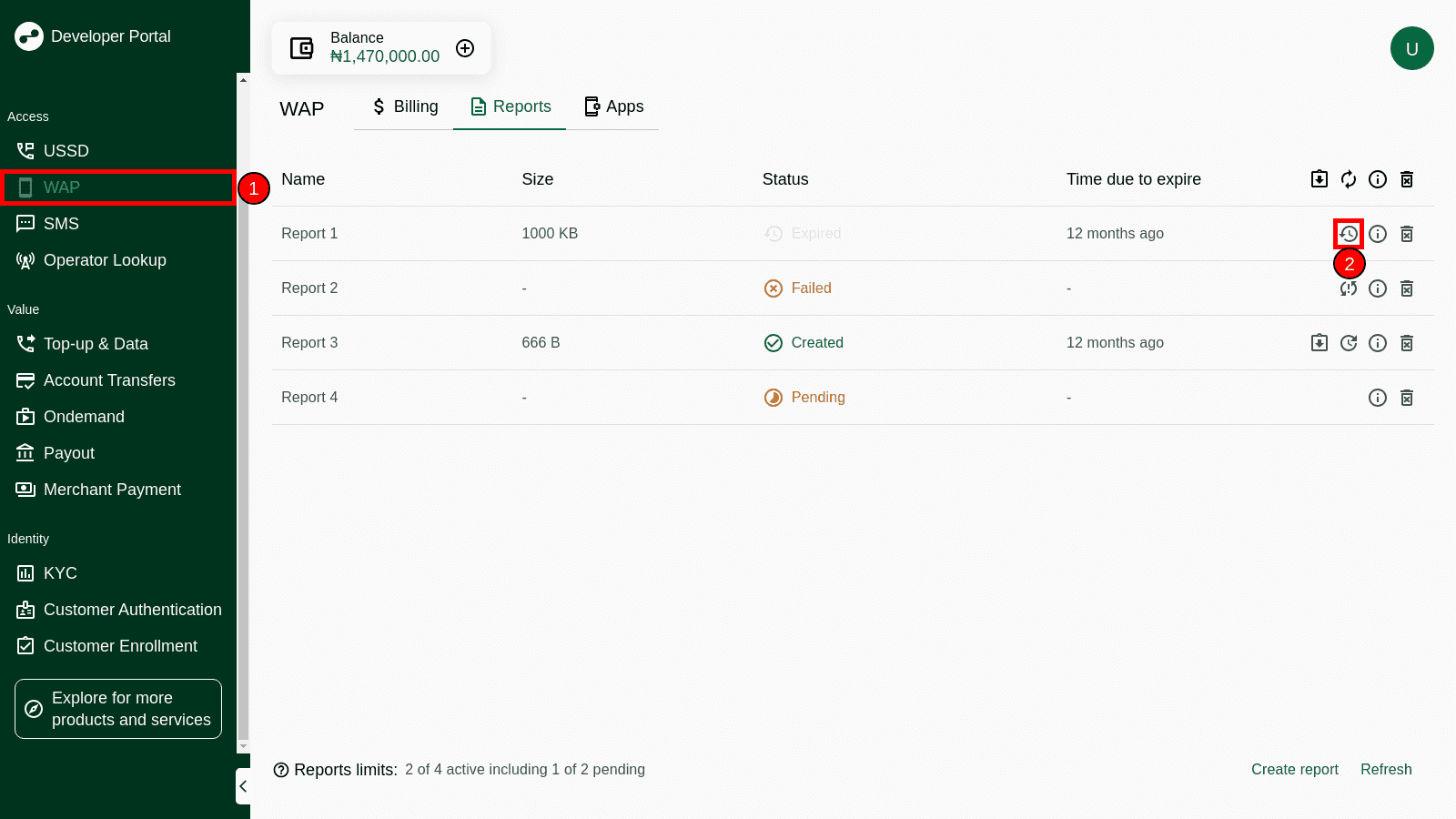

Can be performed for "Created" and "Expired" reports. To regenerate report:

  1. Click the Reports tab in WAP submenu.

  2. Click regenerate action to open the regenerate dialog window

  3. Click "Regenerate report" to create a new report with predefined data scope

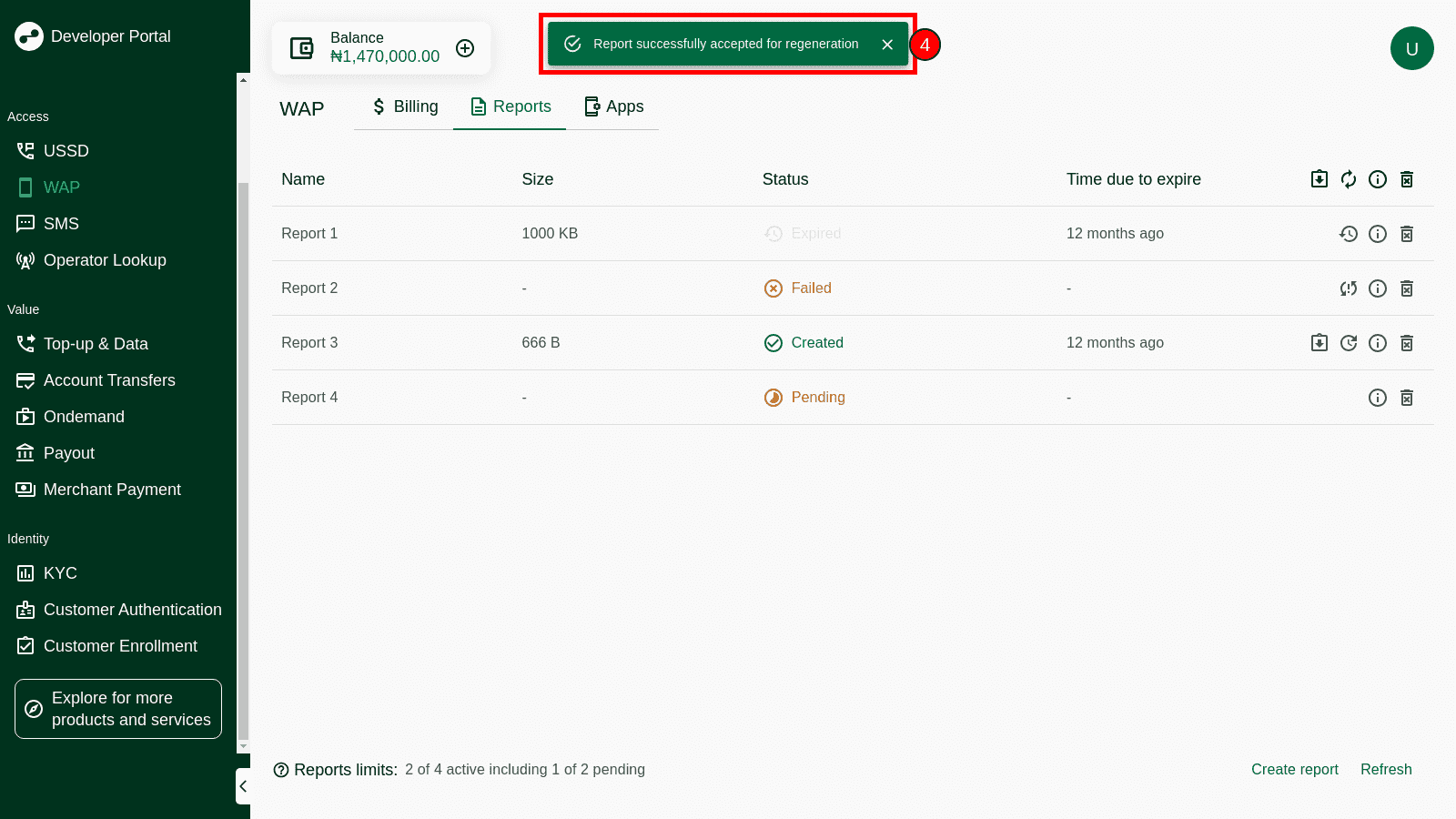

  4. When everything is correct, you should see the success message

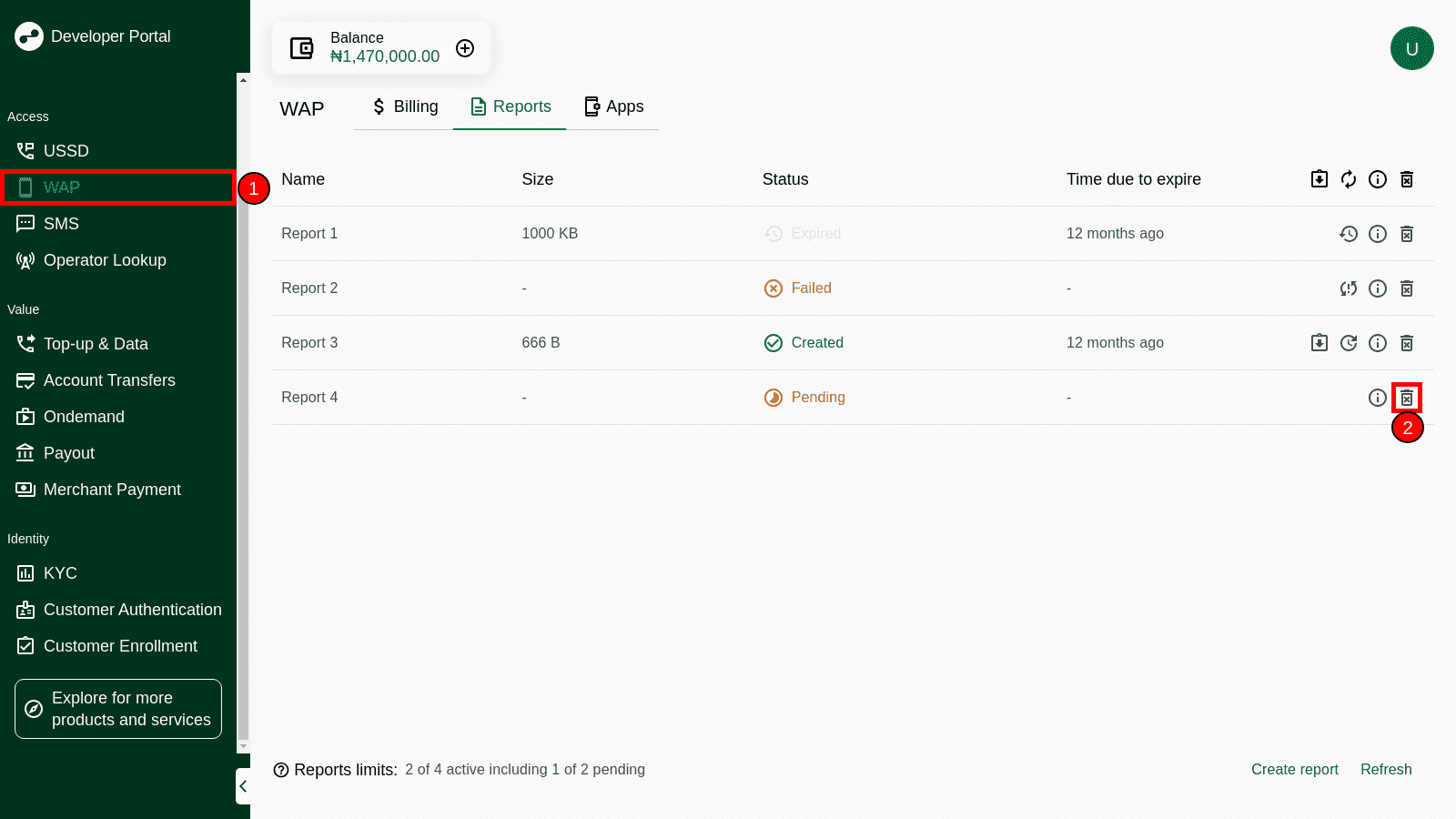

Cancel report​

Can be performed for "Pending" report. To cancel report:

  1. Click the Reports tab in WAP submenu.

  2. Click cancel action to open the cancel dialog window

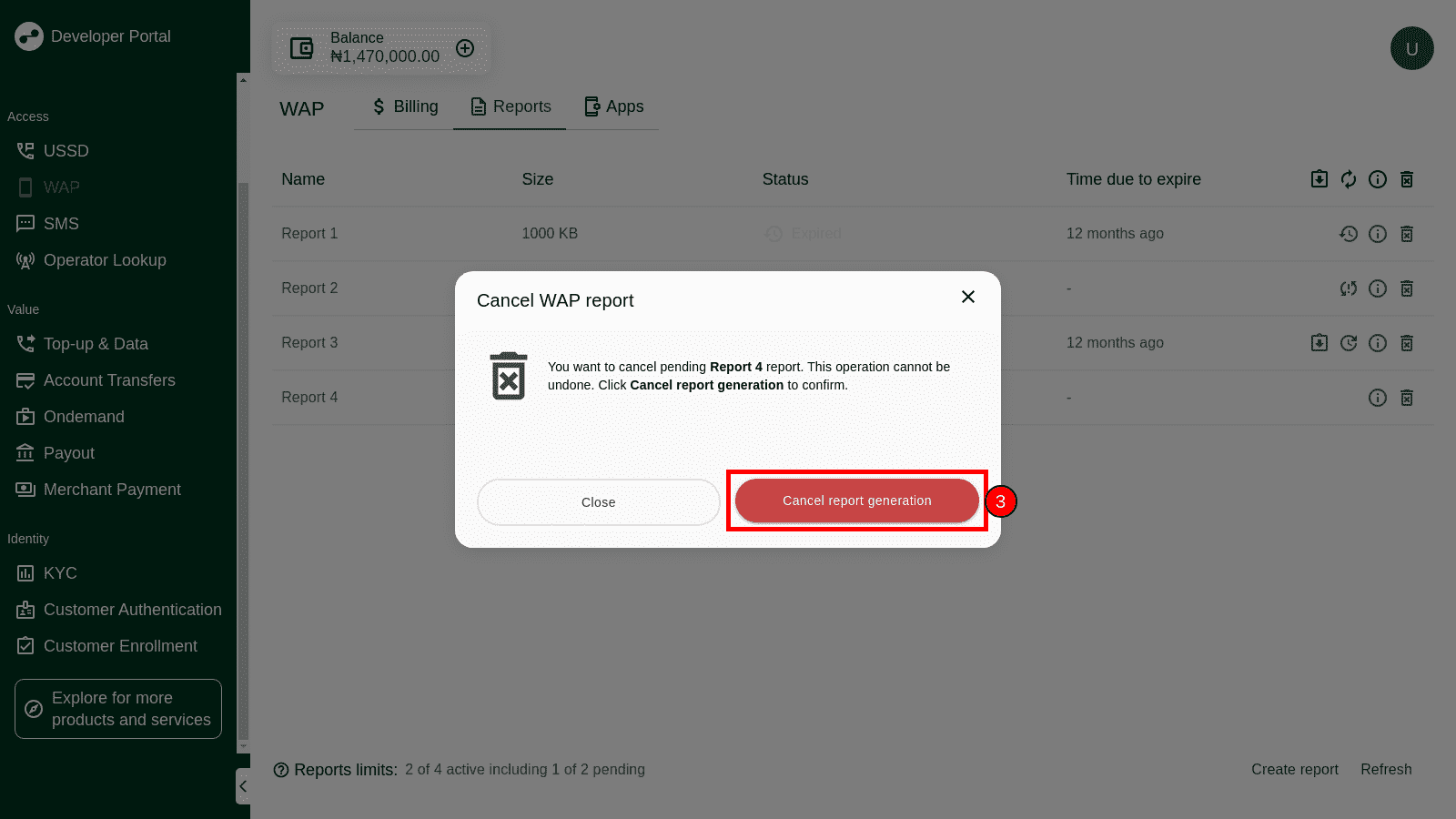

  3. Click "Cancel report generation" to cancel generating the report

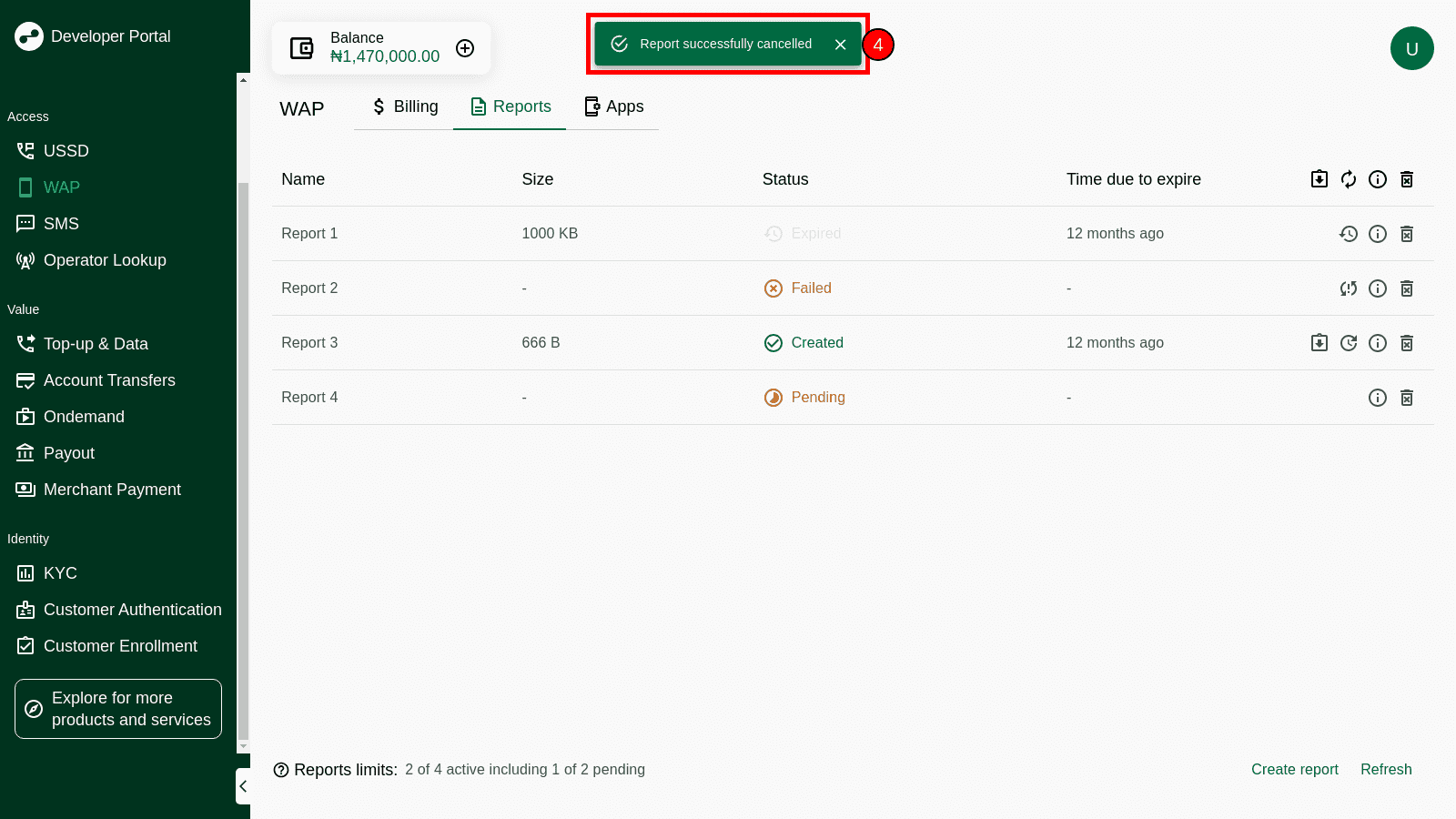

  4. When everything is correct, you should see the success message

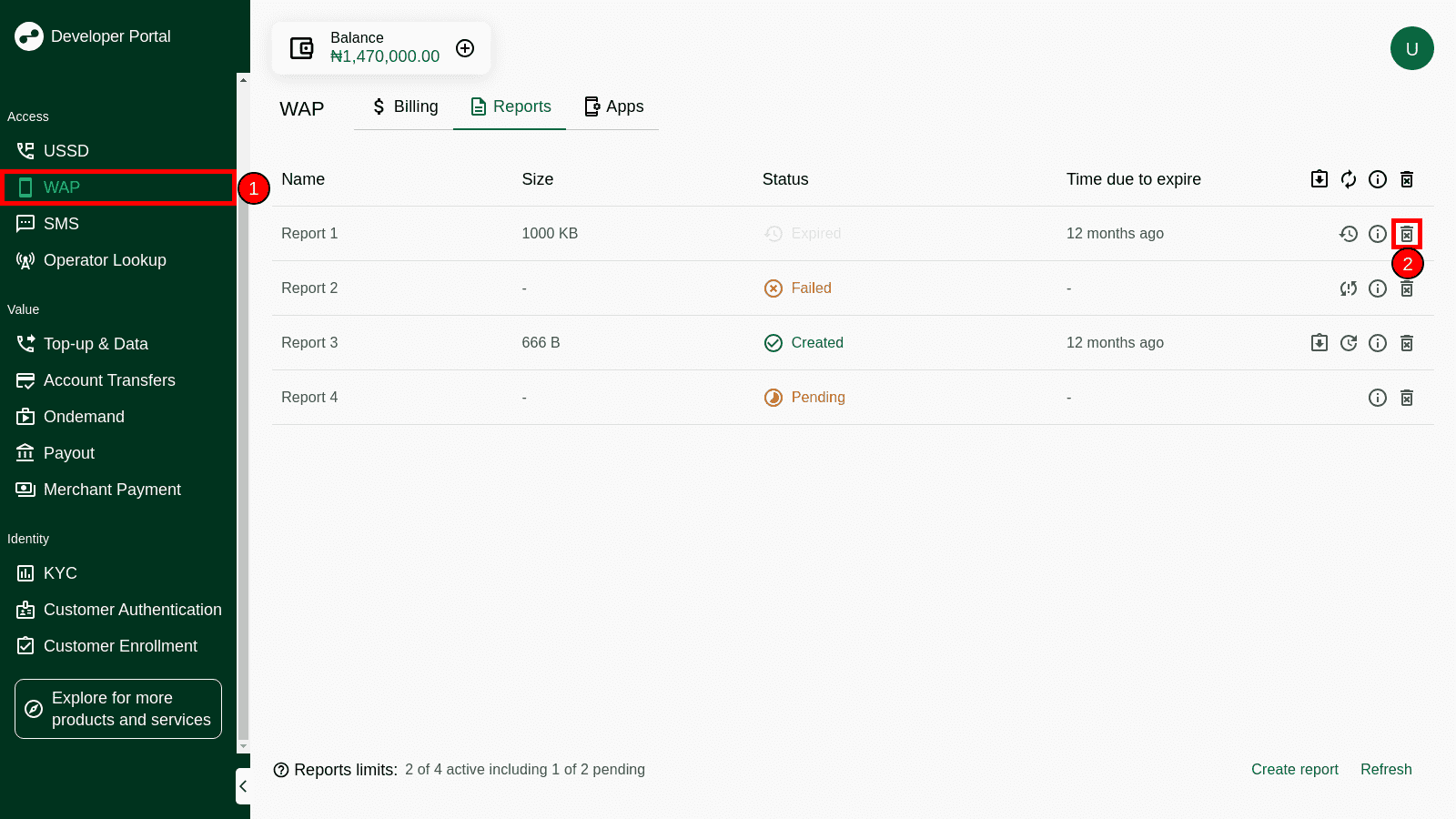

Delete report​

Can be performed for "Created", "Failed" and "Expired" reports. To delete a report:

  1. Click the Reports tab in WAP submenu.

  2. Click delete action to open the delete dialog window

  3. Click "Delete" to delete the report

  4. When everything is correct, you should see the success message

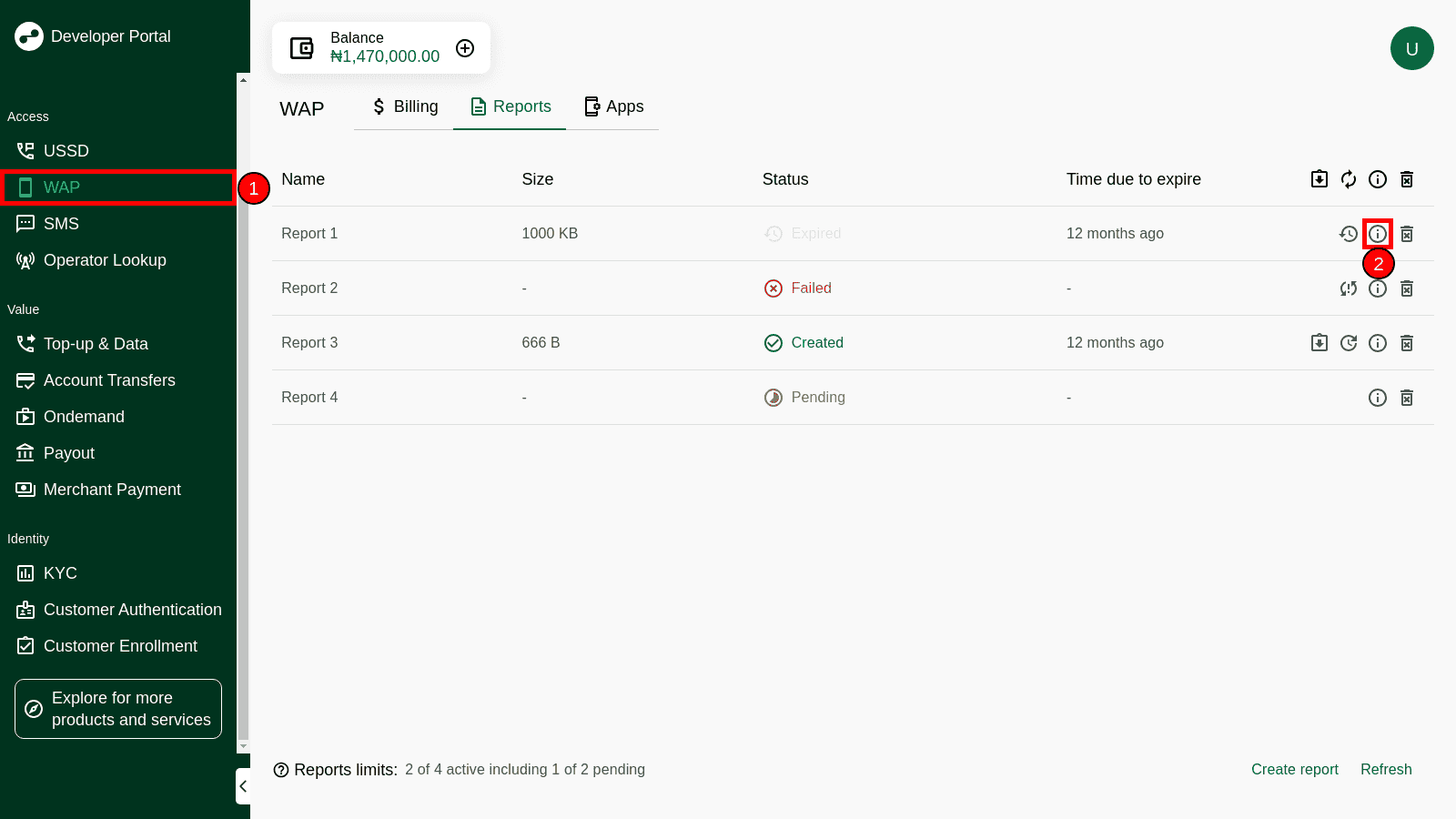

Check report details​

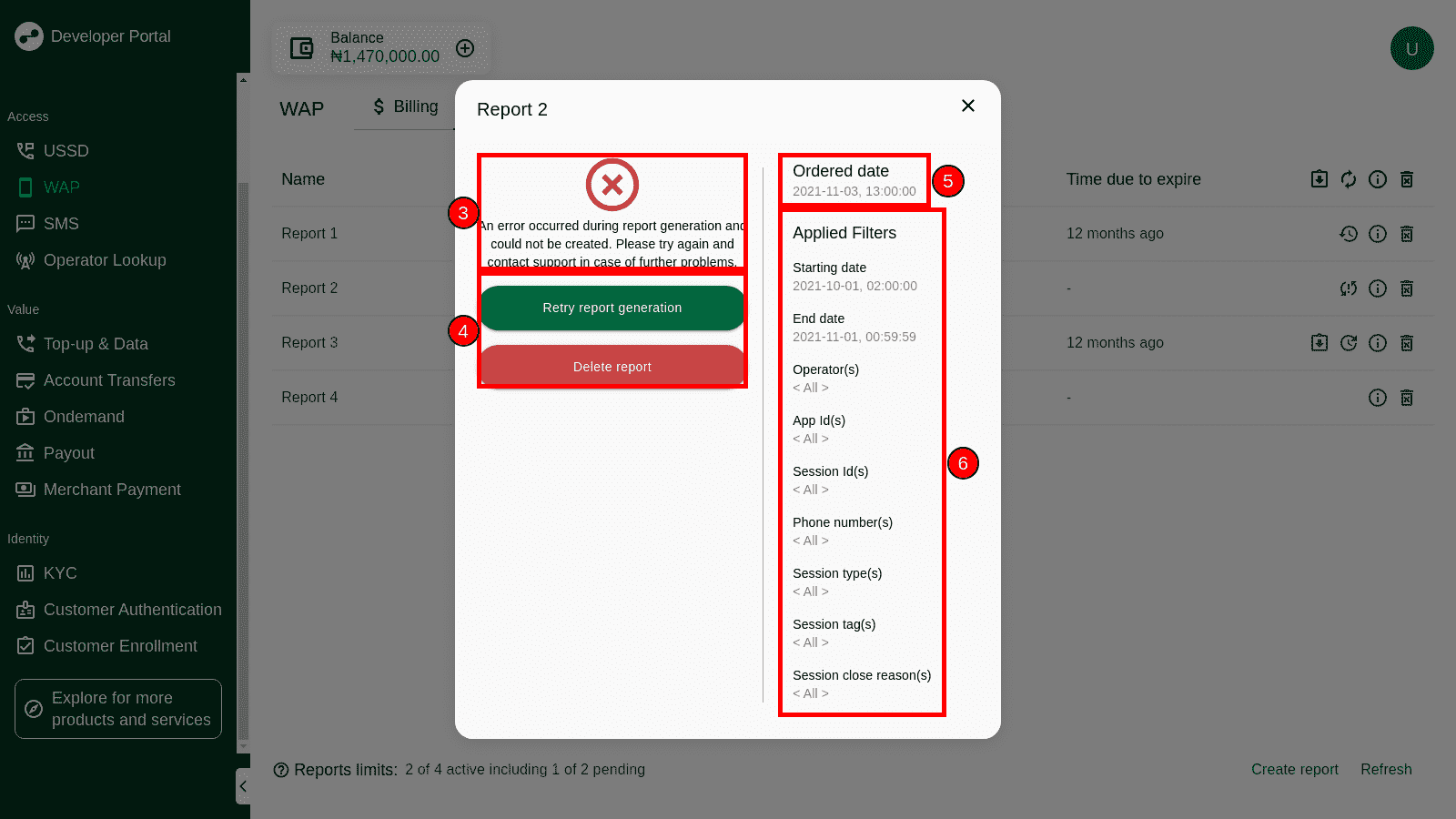

Every report has details, the kind of details depends on the report status. To check report details:

  1. Click the Reports tab in WAP submenu.

  2. Click details action to open the details dialog window

  3. You should see the status of selected report

  4. And you can perform available actions

  5. And you can see base details information

  6. And which filters was applied

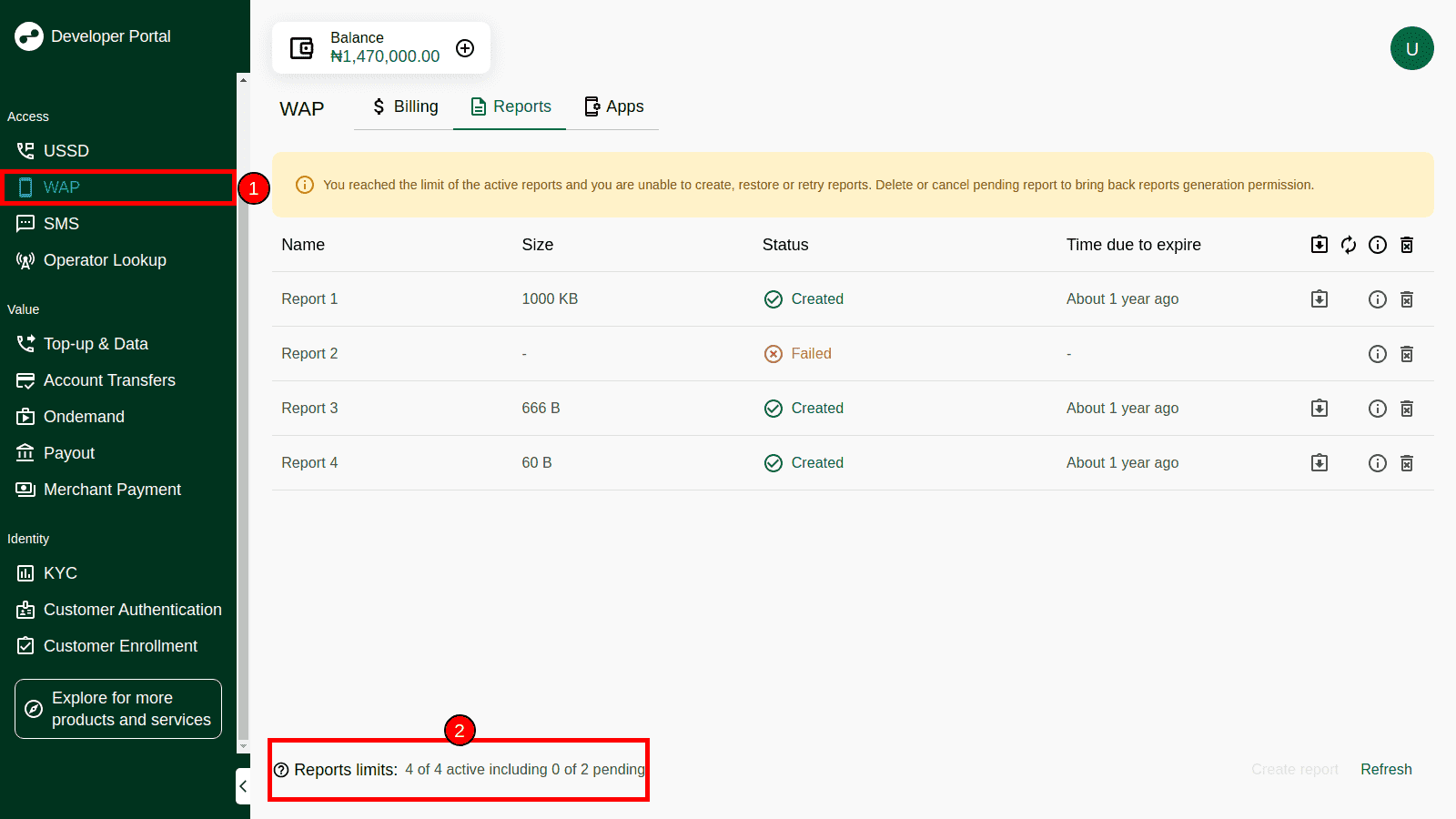

Check if the report limit has been reached​

You have a limited pool of reports available to generate. To check if the limit has been reached:

  1. Click the Reports tab in WAP submenu.
  2. If you see the warning message in the lower left corner below the table it means that you reached the limit. You can always check here the active and pending number of the current and max number of reports.
